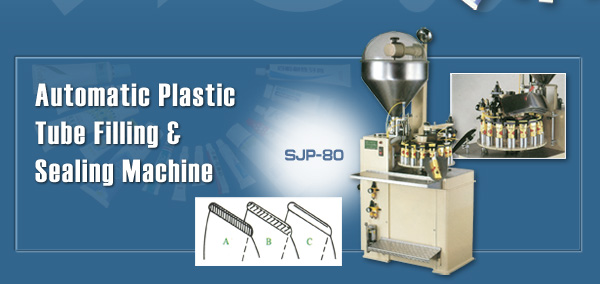

SEALING TYPES:
|
|
1.
|
Linear Type.
|
|
2.
|
Slash Type.
|
|
3.
|
Horizontal Type.
|
|
|
|
※
|
SEALING OF PLASTIC
TUBES:
|
|
1.
|
Soft tube be clamped and
revolving on rotary table and sealed by heating
clamp.
|
|
2.
|
Heating by electric
heating device with protection cover for safely.
|
|
3.
|
Prevent soft tube from
scorching, please lift the heater by hand when
the machine stop.
|
|
4.
|
The filling tube designed
for passing 2 process of air cooling clamp
ensures the security of sealing.
|
|
5.
|
Cooling by compression air
after sealed.
|
|
|
|
|
|
※
|
OUTPUT CAPACITY:
|
|
1.
|
Max. up to 25-40
tubes/min. (Depending on tube
size and filling products.)
|
|
2.
|
Size Range:
|
|
● Tube Diameter 10-40 mmΦ
● Tube Length: 40-180 mm
● Dosing : 20mmΦ, 5-30ml
32mmΦ, 10-80ml
45mmΦ, 30-160ml
● Dosing Pistons: 20, 32, 45mmΦ
|
|
|
