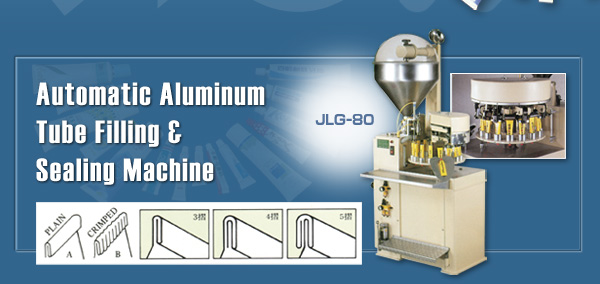

SEALING OF METAL
TUBES (select one only):
|
|
1.
|
2 or 3 folded.
|
|
2.
|
4 folded.
|
|
3.
|
5 folded.
|
|
|
|
※
|
SPECIAL FEATURES:
|
|
1.
|
Multifunction
for automatic weighing, auto filling, counting,
sealing, coding and ejecting.
|
|
2.
|
Feeding the
tube to the closing head by manual.
|
|
3.
|
Up-down micro
adjustment to make adjustment easier when
changing sizes of closing.
|
|
4.
|
3-Way valve and
fixed capacity pump ensure high quality filling.
The innovation made enables easy assembling and
disassembling to save time, and make it easier
to clean and disinfect the machine to increase
production.
|
|
5.
|
Large selection
range of filling nozzle size to match up
different liquid or paste.
|
|
6.
|
Filling nozzle
descends into 20mm depth inside of tube.
|
|
7.
|
Suck-back
device to prevent filling leakage.
|
|
8.
|
Easy regulation
of dosing by variation of piston stroke.
|
|
9.
|
Regulation of
dose can obtain precision filling.
|
|
10.
|
The machine
will stop filling by electronic control when
there is not any tube prepared.
|
|
11.
|
3-Way valve,
pump and funnel are all made of stainless steel,
and piston is made of Teflon.
|
|
12.
|
Funnel capacity
is 70 liters.
|
|
|
|
※
|
CLOSING HEADS:
|
|
1.
|
On all models, the normal
height of the fold or of sealing is of 5 mm. The
closing jaw can be flat or crimped.
|
|
2.
|
Coded on the fold either
flat or crimped is clear and visible with
numbers.
|
|
|
|
※
|
APPLICATIONS:
|
|
|
For Ointment, Toothpaste,
Washing Cream, Beauty Cream, Shampoo, Hair
Lotion, Colors, Chocolate, Jam, and other Liquid
& Paste.
|
|
|
|
※
|
OPTIONAL SUPPLEMENTAL EQUIPMENT:
|
|
1.
|
Tube cleaning
device:
To be fixed before filling, including an air
spray nozzle to suck out dust.
|
|
2.
|
For stirring of
pastes:
Spiral propeller and agitator driven either by
the main motor of the machine, or by an
independent motor.
|
|
3.
|
For products which
have to be filled through
heating:
Electric heated double layer hopper and
regulation (including a pump for circulation of
hot water which allows even heat distribution).
|
|
4.
|
Raw material
conveying device:
S.S. Gear Pump 1/2 HP & Storage Tank.
|
|
5.
|
Tube marked by
automatic photoelectrical cell
positioned.
|
|
|
|
※
|
POWER CONSUMPTION:
|
|
1.
|
Motor: 1 HP
|
|
2.
|
Hopper Heating: 1.5
KW. (Optional)
|
|
3.
|
|
Air Supply:
|
2 kgs/cm3 for tube
cleaner, blow-off nozzle & cooling plastic
tube-end after heat sealing.
|
|
|
4.
|
Weight: Approx. 300 kgs Net/450 kgs Gr.
|
|
5.
|
Shipping Dimensions:
80 x 110 x 220 cm
|
|
|
|
※
|
OUTPUT CAPACITY:
|
|
1.
|
Max. up to 25-55
tubes/min. (Depending on tube
size and filling products.)
|
|
2.
|
Size Range:
|
|
● Tube Diameter 10-40 mmΦ
● Tube Length: 40-180 mm
● Dosing : 20mmΦ, 2-30ml
26mmΦ, 5-50ml
32mmΦ, 10-80ml
45mmΦ, 30-160ml
● Dosing Pistons: 20, 26, 32, 45mmΦ
|
|
|
