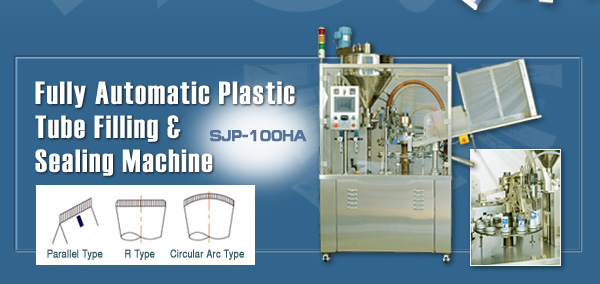

THEORY:
|
|
|
Adopt hot air sealing system that can heating
for inner of soft tube immediately. (Not any
convex angle on outer surface. )
|
|
|
|
|
※
|
SPECIAL FEATURES:
|
|
1.
|
Multifunction for auto
feeding, photoelectrical cell positioning,
automatic weighing, auto filling, counting,
sealing, coding and ejecting.
|
|
2.
|
Max. up to 30-60
tubes/min. (Depending on tube size and filling
products.)
|
|
3.
|
Filling capacity: 5-280ml.
|
|
4.
|
Adopt teach intelligent
mark detection photoelectric switch.
|
|
5.
|
Adopt touch screen
operation. (Optional)
|
|
6.
|
Adopt PLC distribution
electric control box.
|
|
7.
|
Filling nozzle inserted
into the bottom of slowly filling up, so the
contents do not produce bubbles.
|
|
8.
|
Imported hot air heater.
|
|
9.
|
Cooling chiller.
(Optional)
|
|
10.
|
Sealing flat-shaped cutter
cut.
|
|
11.
|
Helical agitation with
stepless speed variable device.
|
|
12.
|
Quick change the mold.
|
|
13.
|
Tube cleaning equipment,
in the former filling station to do a vacuum
cleaning. (Optional)
|
|
14.
|
Auto level switch (pump
not included). (Optional)
|
|
15.
|
With normal, abnormal and
warning light.
|
|
16.
|
Machine construction is
made of stainless steel.
|
|
17.
|
With safety aluminum
window.
|
|
※
|
air compressor not
included.
|
|
|
|
|
