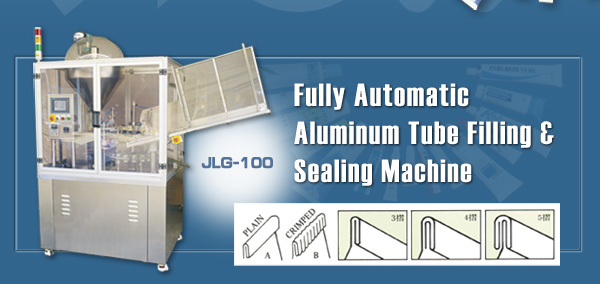

SEALING OF METAL TUBES (select one only):
|
|
1.
|
2 or 3 folded.
|
|
2.
|
4 folded.
|
|
3.
|
5 folded.
|
| |
|
|
※
|
SPECIAL FEATURES:
|
|
1.
|
Multifunction for auto
feeding, photoelectrical cell positioning,
automatic weighing, auto filling, counting,
sealing, coding and ejecting.
|
|
2.
|
Up-down micro adjustment
to make adjustment easier when changing sizes of
closing.
|
|
3.
|
3-Way valve and fixed
capacity pump ensure high quality filling. The
innovation made enables easy assembling and
disassembling to save time, and make it easier
to clean and disinfect the machine to increase
production.
|
|
4.
|
Large selection range of
filling nozzle size to match up different liquid
or paste.
|
|
5.
|
Filling nozzle descends
into tube during filling.
|
|
6.
|
Suck-back device to
prevent filling leakage.
|
|
7.
|
Easy regulation of dosing
by variation of piston stroke.
|
|
8.
|
Regulation of dose can
obtain precision filling.
|
|
9.
|
The machine will stop
filling by electronic control when there is not
any tube prepared.
|
|
10.
|
3-Way valve, pump and
funnel are all made of stainless steel, and
piston is made of Teflon.
|
|
11.
|
Funnel capacity is 70
liters.
|
|
|
|
※
|
CLOSING HEADS:
|
|
1.
|
On all models, the normal
height of the fold or of sealing is of 5 mm. The
closing jaw can be flat or crimped.
|
|
2.
|
Coded on the fold either
flat or crimped is clear and visible with
numbers.
|
|
|
|
※
|
APPLICATIONS:
|
|
|
For Ointment, Toothpaste,
Washing Cream, Beauty Cream, Shampoo, Hair
Lotion, Colors, Chocolate, Jam, and other Liquid
& Paste.
|
| |
|
|
※
|
OPTIONAL SUPPLEMENTAL EQUIPMENT:
|
|
1.
|
Tube cleaning device:
To be fixed before filling, including an air
spray nozzle to suck out dust.
|
|
2.
|
2. For stirring of pastes:
Spiral propeller and agitator driven either by
the main motor of the machine, or by an
independent motor.
|
|
3.
|
3. For products which have to be filled through
heating:
Electric heated double layer hopper and
regulation (including a pump for circulation of
hot water which allows even heat distribution).
|
|
4.
|
Raw material conveying device:
S.S. Gear Pump 1/2 HP & Storage Tank.
|
|
5.
|
Auto liquid level switch for conveyor pump.
|
|
6.
|
Mini conveying equipment for finished products.
|
|
|
|
※
|
POWER CONSUMPTION:
|
|
1.
|
Motor: 2 HP
|
|
2.
|
Hopper Heating: 2.0 KW. (Optional)
|
|
3.
|
|
Air Supply:
|
2 kgs/cm3 for tube
cleaner, blow-off nozzle & cooling plastic
tube-end after heat sealing.
|
|
|
4.
|
Weight: Approx. 500 kgs Net/700 kgs Gr.
|
|
5.
|
Shipping Dimensions: 100 x 130 x 220 cm
|
|
|
|
※
|
OUTPUT CAPACITY:
|
|
1.
|
Max. up to 30-65 tubes/min. (Depending on tube
size and filling products.)
|
|
2.
|
Size Range:
|
|
● Tube Diameter 10-40 mmΦ
● Tube Length: 40-200 mm
● Dosing: 20mmΦ, 2-30ml
26mmΦ, 5-50ml
32mmΦ, 10-80ml
45mmΦ, 30-160ml
● Dosing Pistons: 20, 26, 32, 45mmΦ
|
|
|
